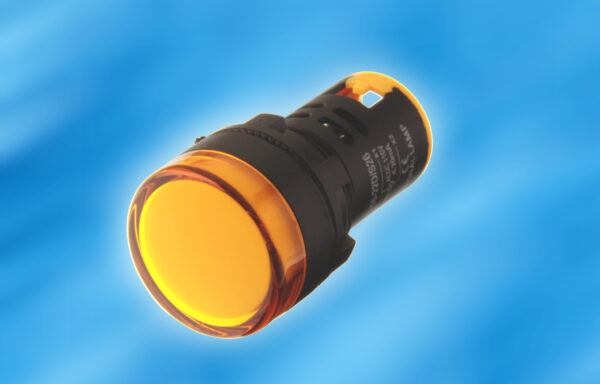

LED Bolt-on Panel Indicator LEDtronics new Bolt-on LED Bolt-on Panel Indicator is a bright choice for industrial control panels
Continuing to expand its offerings of LED indicators for industrial control panels, LEDtronics® introduces a new addition to its family of bolt-on panel indicators with the 120-volt, super yellow BS850CAF lamp.
As with the rest of the series, the new LED panel indicator light has bipolar terminals that make it easily installed into 7/8 inch (22mm) diameter mounting holes with side-insert lead wires and Phillips screws.
The high-intensity, direct incandescent-replacement lamp is sunlight visible and boasts a wide viewing angle of 125 degrees, making it an excellent choice for control panels in such applications as power plants, automation equipment, product floors, construction equipment, machinery, and medical equipment. It is also ideal for pilot lights, signal lights, and any similar control panels with a thickness no greater than 0.335 inch (8.51mm), with a recommended mounting hole of 0.899 inch (22mm).
It features a flat, low-profile, super-yellow tinted polycarbonate lens with a separate white internal diffuser in a black PA66 nylon housing. A choice of other colors and voltages is available: 240VAC, 24V, and 28V AC/DC, and a lineup of lights in Super Red, Super Orange, Aqua Green, and Natural White.
Offering energy savings, negligible heat generation, and a wide operating temperature range of -13 to +176 degrees Fahrenheit (-25°C to +80°C), the BS850CAF-120VAC uses less than 1 watt. The 120-volt lamp provides a luminous output of 0.29 lumens and 97 millicandelas, at a rated current of 0.005 amps.
With over 70% lumen maintenance of colored LEDs and an average life span of 50,000-plus hours (5+ years)—many times longer than the equivalent incandescent lamp—the BS850CAF-120VAC LED lamp operates reliably year after year. Savings from reduced maintenance costs and downtime quickly return the capital investment expenditure! Additionally, unlike their incandescent counterparts, LED lamps generate only minimal heat and emit neither UV/IR rays nor RF interference.
The latest LEDtronics Bolt-on Panel Indicator comes with a one-year factory warranty, and is available through LEDtronics distributors; quantity discounts are available. Other voltages and color options are available for large quantities and qualified applications.
